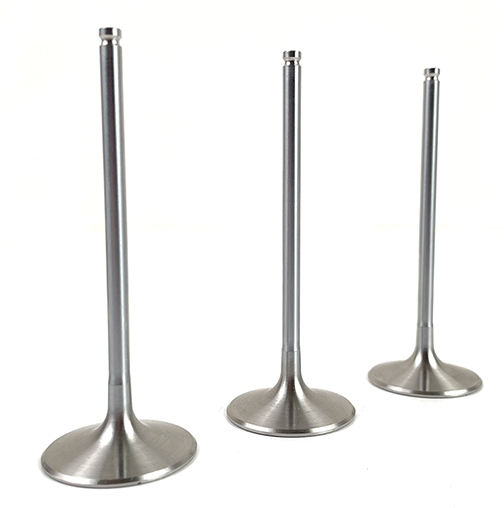

STAINLESS STEEL VALVES
YXZ1000R - POLARIS RZR1000

APE is a leading supplier of high performance and racing valves for powersports. APE stainless steel valves are precision manufactured from aircraft quality Inconel based stainless steel. This special material offers excellent resistance to heat and distortion. APE stainless steel valves are designed to be used in the most extreme racing applications including the use of exotic fuels, or will give many miles of trouble-free offroad use. They present an outstanding value. In most cases you can upgrade to APE stainless steel valves for less than the cost of replacement stock valves. All stainless steel valves feature hard chrome stems for extra long stem to guide life.

YAMAHA YXZ1000R 2016 - 2019
31MM Intake #98411 $32.14 ea.
32.5MM Intake oversize #98412 $32.14 ea.
26mm Exhaust #98413 $32.14 ea.
27mm Exhaust #98414 $50.00 ea.
POLARIS RZR1000
38MM Intake #98375 $32.95 ea.
38.5MM Intake #98376 $32.95 ea.
29.2MM Inconel Exhaust #98388 $32.95 ea.
30.2MM Inconel Exhaust #98389 $32.95 ea.

MANUAL CAM CHAIN TENSIONERS

APE manual cam chain tensioners are designed to replace the automatic and hydraulic tensioners on high performance engines. The automatic adjusters can back out when the throttle is closed suddenly at high rpm. This allows the cams to go momentarely out of time, and can result in bent valves and/or serious engine damage. Hydraulic tensioners have a tendency to put too much tension on the chain guide under high rpm/high oil pressure conditions, resulting in premature wear. Both problems can be eliminated with the installation of the APE manual tensioner.

APE Pro-Series tensioners come with mounting bolts and tensioner gasket.

For installation instructions click here.
Yamaha YXZ1000/1000R 2016-2023 #YTYXZ1000-PRO (order online) $109.95 (Special installation note)
Polaris RZR 570 2012-2022 #PT900-PRO (order online) $109.95
Polaris RZR 900/XP900 2011-2016 #PT900-PRO(order online) $109.95
Polaris RZR 1000 2014-2016 #PT900-PRO (order online) $109.95
Polaris RZR 900/1000 2017-2023 #PT1000-PRO (order online) $109.95
Polaris RZR XP Turbo / XP1000 2016-2021 #PT1000-PRO (order online) $109.95
Polaris Ranger 900/1000 2017-2023 #PT1000-PRO (order online) $109.95
Polaris General 1000 2017-2019 #PT1000-PRO (order online) $109.95



ADJUSTABLE CAM SPROCKETS

APE manufactures the original "billet" adjustable cam sprockets. Our sprockets are necessary for precise cam timing to achieve maximum performance.

APE sprockets are fully machined on the latest state of the art computerized equipment to precision tolerances and fully heat treated for extra long wear life. Used by most leading racers who demand top performance along with the safety of not chancing their expensive racing heads to reworked stock sprockets.

Yamaha YXZ1000 2016 - 2023 ACSYXZ1000 $87.95
Polaris RZR1000PS / XP / EPS 2014 - 2023 ACSRZR1000 $87.95

CYLINDER HEADS

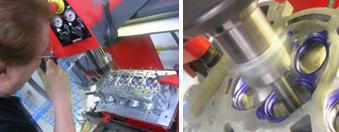

APE has long been known as a leader in racing powersports cylinder heads. APE cylinder heads have been winning races for decades.

APE is the only race head shop that also manufacturers all of the components used. APE supplies these items to other top cylinder head shops. Our porting is top of the line. Big power boost are not uncommon.

We offer basic Serdi Valve jobs to complete race heads with stainless steel valves and springs and titanium retainers.

THIS HEAD SERVICE IS UNAVAILABLE UNTIL FURTHER NOTICE

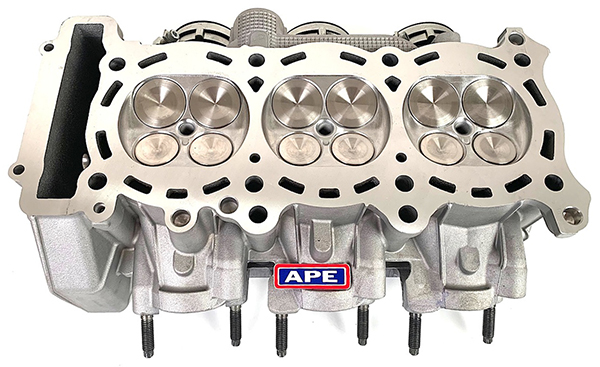

RACE HEAD PACKAGE - YAMAHA YXZ1000

Race porting
Valve job
Stainless steel valves
Race springs
Titanium retainers optional

#HW-62 - $1649.00



RACE HEAD PACKAGE - POLARIS RZR1000

Race porting
Stainless/Inconel valves
Race springs
Titanium retainers

#HW-64 - $1649.00



THIS HEAD SERVICE IS UNAVAILABLE UNTIL FURTHER NOTICE

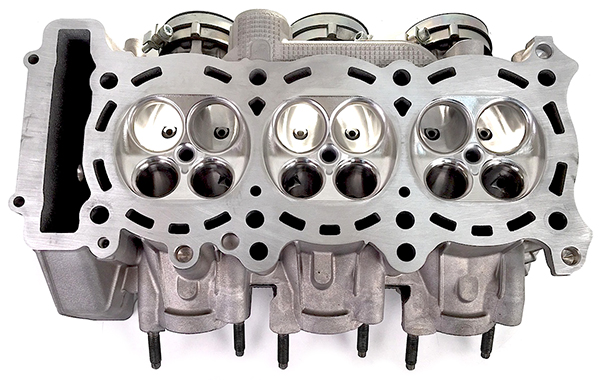

PORT / VALVE JOB USING STOCK PARTS

YAMAHA YXZ1000 #HW-61 - $995.00

POLARIS RZR1000 #HW-63 - $895.00







TITANIUM RETAINERS

APE valve spring retainers are machined from aircraft quality titanium bar stock in the APE plant on the latest state of the art computerized CNC machinery.CNC machining allows us to offer such advantages as bored taper keeper holes for exact keeper fit. Special gauging fixtures allow dimensions to be held close to provide exact installed heights when assembling the cylinder head.

YAMAHA YXZ1000 (SET OF 12) - #TVSRYXZ1000 - $185.00



HEAVY DUTY VALVE SRINGS

APE is a leading manufacturer of racing valve springs in the powersports industry.
Premium Chrome Silicon wire with special heat treatment.

YAMAHA YXZ1000 (2016 - 2023)
#VSYXZ1000 - $159.45
Set uses APE or stock retainers. Can accept any cam lift that can be put in the motor. Room to adjust pressure for big turbo boost. 55 lbs. seat pressure, 140 lbs.@.300" - Coil bind @.560

POLARIS RZR1000
#VSRZR1000 - $349.95
Extreme duty springs and titanium retainers.

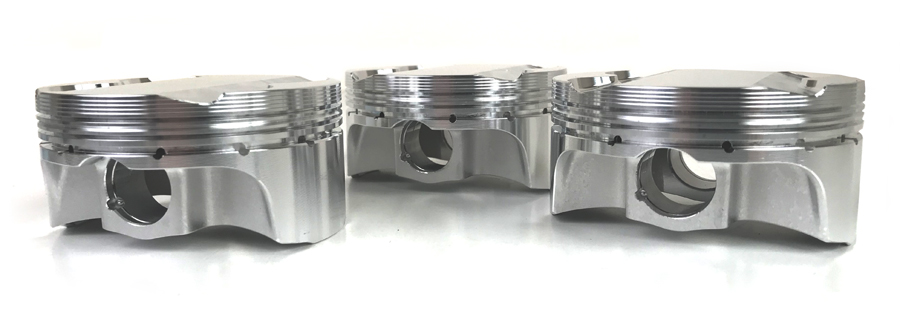

PISTON KITS

Complete kits come with pistons, rings, clips and wrist pins. Gaskets sold separately.

YAMAHA YXZ1000 (2016-2019)
BORE SIZE COMPRESSION RATIO PART NO. MANUFACTURER PRICE
80MM 13:1 YXZ40161 WISECO $540.18
80MM 9.5:1 YXZ40160 WISECO $540.18
80MM 9.5:1 345192 JE $713.99
80MM 11.5:1 345193 JE $713.99
80MM 12.5:1 345194 JE $713.99
80MM 13:1 345195 JE $713.99
80MM 9.5:1 M1095-3 CP $763.80
80MM 11.5:1 M1097-3 CP $763.80
80MM 12.5:1 M1096-3 CP $763.80

POLARIS RZR1000 (2014-2017)
BORE SIZE COMPRESSION RATIO PART NO. MANUFACTURER PRICE
93MM 9.5:1 M9054-2 CP $618.58
93MM 9.5:1 M9051-2 CP $618.58
93MM 11.5:1 M9055-2 CP $618.58
93MM 12.5:1 M9056-2 CP $618.58
96MM 11.5:1 M9057-2 CP $618.58
93MM 9.5:1 363684 JE $539.74
93MM 10.5:1 363685 JE $539.74
93MM 11.0:1 363686 JE $539.74
93MM 11.5:1 363687 JE $539.74
93MM 12.0:1 363688 JE $539.74



HEAVY DUTY CYLINDER STUDS

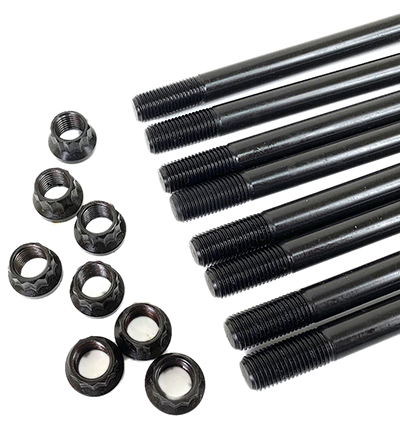

POLARIS RZR1000 (Shown)
Heavy Duty Cylinder Stud kit With 12 pt nuts. Heat treated to stand up to the most extreme applications. Threads rolled after heat treat for maximum strength.

#CSRZR1000 - $129.00

YAMAHA YXZ1000 (2016 - 2021)
Heat treated to stand up to the most extreme applications. Threads rolled after heat treat for maximum strength. Use APE Head nuts # CHN10125-8 (below.)

#CSYXZ1000 - $89.95

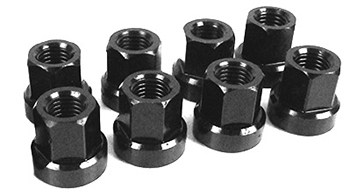

HEAVY DUTY NUTS

Use with part# CSYXZ1000 above.

#CHN10125-8 - $59.95

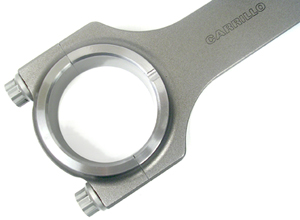

CARRILLO PRO H-BEAM CONNECTING RODS

The world's strongest rods. Fully CNC machined from chrome moly forgings, Carrillos are the strongest rods available for motorcycles. Features multiphase bolts. Why risk distruction of the complete lower end when Carrillos provide that extra cushion of protection.

YAMAHA YXZ1000
H-Beam for Turbo Motors #CAR9048 $1022.46 / set
H-Beam for NA applications #CAR9171 $1022.46 / set
POLARIS RZR1000
H-Beam Rods #CAR7901 $705.86 / set
